Table plasma cutter can cut mild steel, high carbon steel, stainless steel, aluminum, copper and other
non-ferrous metal, etc.
It is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels,
engineering machinery, mining machinery,electric power, building bridges, steel Industries.
|

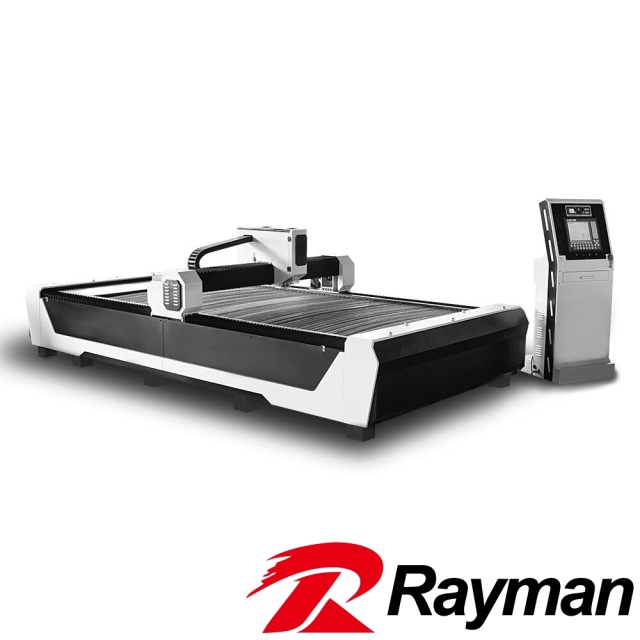

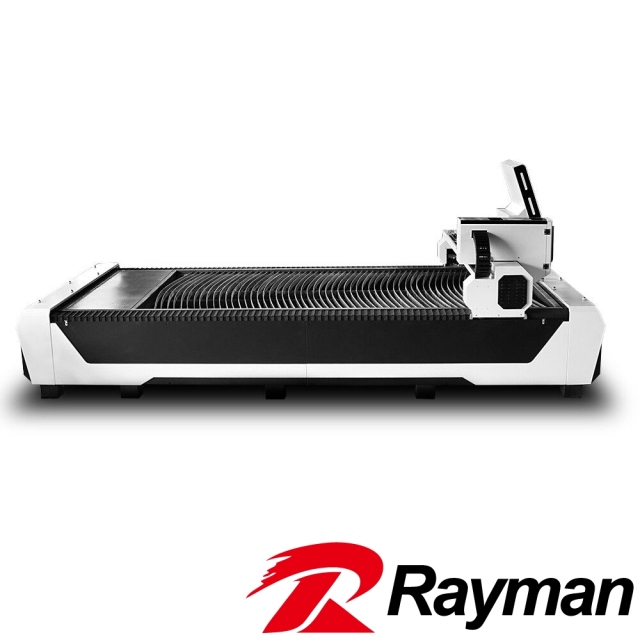

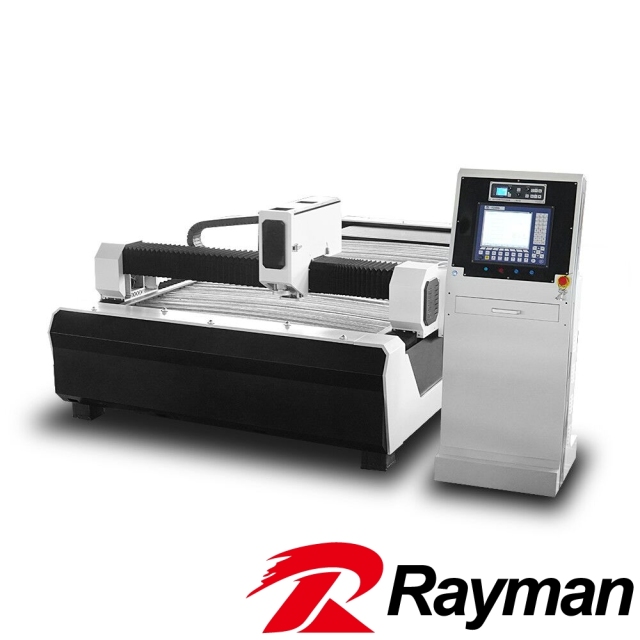

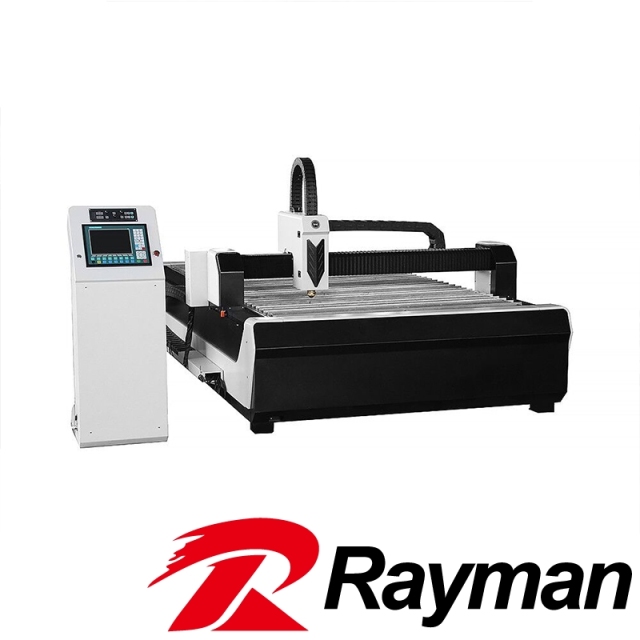

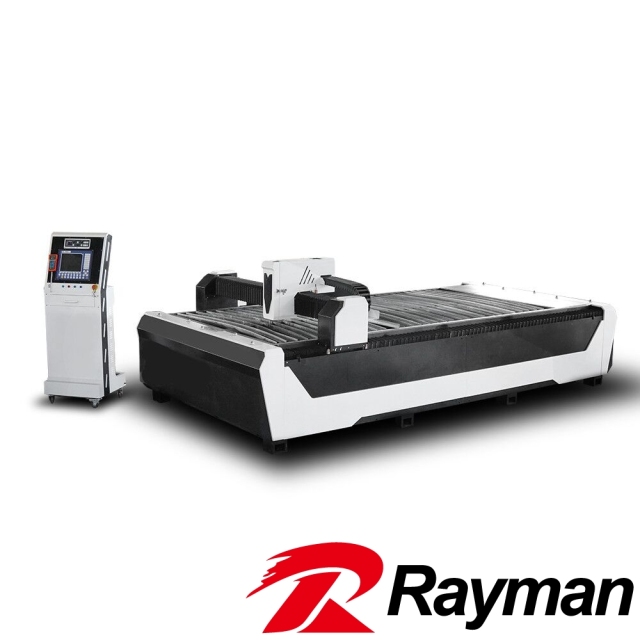

Table type CNC plasma cutting machine |
||||
|
Model |
RM-T1325 |
RM-T1530 |
RM-T1560 |
|
|
Effective Cutting area WIDTH*LENGTH(m) |
1.5*3.0 |
1.5*3.0 |
1.5*6.0 |
|
|
Approximate Machine table board WIDTH*LENGTH(m) |
2.0*4.0 |
2.0*5.0 |
2.0*7.0 |
|
|
Width: 1.3m,1.5m, 1.8m Length:2.5~5m |
||||
|
Configuration |
||||
|
Cutting model |
Give priority to with plasma/ The flame can be |
|||
|
Cutting speed |
No-load speed: 20m/min without shake |
|||
|
Loading speed: 0~15m/min with high stability |
||||
|
Cutting thickness |
0~30mm with plasma / Specific cutting thickness depends on the plasma power Advice cutting <14mm metal; not advice support frame to bear too much weight |
|||
|
Drive mode |
Double-sides Driving |
|||
|
Drive motor |
Servo motors for driving |
|||
|
Torch Height Control |
||||
|
Arc THC |
HYD brand XPTHC-4H |
|||
|
Rail |
||||
|
Precision |
PRECISION HIWIN brand LINEAR RAIL, |
|||
|
Precious linear Square guide rail and linear guide rail; better than round guide |
||||
|
The linear tolerance of two guides on X axis is less than 0.05mm;X and Y axis vertical tolerance is less than 0.05mm; |
||||
|
Cutting Torch |
||||
|
Model |
plasma cutting (Main cutting model) |
|||
|
Torch No. |
1 plasma torch; |
|||
|
Power&Software&System |
||||
|
Usable Plasma power |
HUAYUAN brand 120A |
|||
|
Nesting software |
Fastcam software from Australia |
|||
|
Cutting platform |
INCLUDE |
|||
|
Gas-guide tube |
KOREA SAMSAN |
|||
|
Auto-system |
BEIJING SATRFIRE |
|||
